Since 2019 was a big year for KTM, it is no surprise that 2020 is a small change year. There are new suspension settings across the board, the 450 SX-F gets a new piston and a 49t rear sprocket, and the KTM 85 SX comes in a big wheel option (19″/16″). For off-road racers, the XC two-strokes now have the TPI (Transfer Port Injection) system that debuted on the enduro models. This is a good sign for any two-stroke motocross riders who want fuel injection on their machines.

THE NEW KTM SX AND CROSS-COUNTRY RANGE IS OUT NOW!

The world-beating KTM SX motocross range just got better. From the junior KTM 50 SX right up to the KTM 450 SX-F powerhouse, the model year 2020 KTM SX lineup, which will be arriving in North American dealers soon, has received refinements and performance updates to ensure these machines continue to dominate at the highest levels of racing.

Based on the successful SX platform, the XC-F and XC models see the same refinements for 2020 and now feature further advancements in 2-stroke technology with the introduction of the Transfer Port Injection-equipped KTM 250 XC TPI and KTM 300 XC TPI. This exciting new lineup is more READY TO RACE than ever.

When it comes to competing in the most prestigious championships around the world, this mantra is an important one to live by. KTM’s desire to win in AMA Supercross and AMA Pro Motocross continues to be demonstrated with outstanding performances in each series thanks to KTM’s focus on creating the sharpest weapons for the toughest battles. This READY TO RACE mindset and development in the most challenging arenas is translated directly into our serial production models.

Following on from last year’s ground-breaking introduction of a new KTM SX generation, the model year 2020 2-stroke KTM 125 SX, KTM 150 SX and KTM 250 SX, and the 4-stroke KTM 250 SX-F, KTM 350 SX-F and KTM 450 SX-F have received performance enhancing engine updates to ensure they remain at the forefront. These detailed refinements, that have been developed with KTM´s test riders in Europe and the U.S., along with factory racers around the globe, complement the high-quality serial components that the KTM SX range already boasts.

The cross-country range has been equally updated for 2020 with advancements to the 4-stroke KTM 250 XC-F, KTM 350 XC-F and KTM 450 XC-F. New for 2020, KTM has expanded its range of innovative TPI models with the introduction of the 2-stroke KTM 250 XC TPI and KTM 300 XC TPI. These exciting new machines offer the latest in fuel injection technology and provide unmatched performance and ease of use, further demonstrating KTM’s commitment to developing industry-leading technology.

New graphics and colors give the SX and XC range a fresh look for the new season, while an E-starter and a map select switch with integrated traction control and launch control on 4-stroke machines, premium brakes supplied by Brembo, No-Dirt footpegs are fitted as standard to KTM’s class-leading lineup. High-quality exhaust systems, plastics and seats join the reworked WP XACT suspension with the proven AER technology, which offers enhanced handling for model year 2020.

Designed by the very same engineers that are responsible for the bikes raced by the likes of Red Bull KTM Factory Racing’s Cooper Webb and Marvin Musquin, the KTM sportminicycle lineup continues to set the benchmark in out-of-the-crate performance for junior riders. For MY2020, the KTM 50 SX, KTM 65 SX and KTM 85 SX have a new look and feature the WP XACT suspension for precise handling and stability in the toughest motocross terrain.

All of the junior models boast premium components such as high-quality Formula brakes, a chromium molybdenum steel frame, ergonomically designed bodywork, NEKEN handlebars and high-performance engines. For model year 2020, the KTM 65 SX has a reworked ignition curve for improved performance, while the carburetor has been optimized for better power delivery. Its bigger brother, the KTM 85 SX, has a new transmission drive shaft fixing for safer sprocket fixation. The KTM 85 SX also has a reworked muffler with improved packing wool, which saves weight. In addition, a new 19”/16” wheel combination is available on the KTM 85 SX for 2020.

“To be the consistent performer at any level of racing, you have to continue to progress in development. The work never stops – whether that’s here in Mattighofen, or with our engineers in the USA. The KTM SX range model year 2020 has received a number of updates to complement last year’s groundbreaking new generation models, and we can see that our continued efforts in development are paying off – our athletes both in Supercross and Motocross have enjoyed some fantastic results so far this season. Utilizing the same R&D team as their bigger brothers, the KTM sportminicycle models remain at the very forefront of junior racing competition with detailed refinements for MY2020,” said KTM´s Senior Product Manager Offroad, Joachim Sauer.

To intensify any new KTM SX and KTM sportminicycle with either aesthetic individualization or performance upgrades, look no further than the KTM PowerParts range. Designed by the engineers in Mattighofen, Austria, these premium components can take any KTM SX to new heights.

In addition, adult and junior riders alike can stay READY TO RACE with the KTM PowerWear collection. High-quality riding gear, premium protection and casual clothing created by KTM and with partners are included in the KTM PowerWear lineup, ensuring KTM fans can state their stance while gearing up to ride to the limit.

Check out the new KTM SX model year 2020 at your local dealer soon or visit www.ktm.com

2020 KTM 450 SX-F

450 SX-F

450 SX-F

The championship-winning KTM 450 SX-F utilizes a proven formula of performance and handling that is the industry benchmark. For 2020, this machine continues to deliver superior performance and easy handling. It features an extremely compact, single overhead camshaft cylinder head and together with the efficient electronic fuel injection, it pushes out unrivalled power in the most effective way possible. The KTM 450 SX-F is simply the fastest motocross bike out on the track.

HIGHLIGHTS

  • NEW graphics for a READY TO RACE appearance.
  • NEW WP XACT front fork setting for improved damping, and new fork piston for improved performance. Features proven, sophisticated air spring design with separate damping functions.
  • NEW WP XACT rear shock setting and new compression adjuster for improved tuning.
  • NEW piston with reworked shape for improved performance and reliability.
  • NEW larger 49t rear sprocket for better response.
  • Compact SOHC (single overhead camshaft) engine with cutting-edge cylinder head featuring titanium valves and super-light finger followers with a hard DLC coating.
  • High-tech, lightweight chrome-moly steel frame with optimized stiffness provides a great blend of comfort and stability.
  • Single-piece cast aluminum swingarm features a long rear axle slot for increased adjustability, offering better straight-line stability.
  • Bodywork features a slim design for optimal comfort, control and freedom of movement.
  • Air box and air boot designed to provide maximum protection of the air filter against soiling and better airflow for optimal performance. Air filter can be accessed without tools for quick servicing. Optional perforated airbox cover included in the by-pack.
  • Header pipe with FDH (Flow Design Header) resonator system for improved performance.
  • Handlebar map switch selects between two maps and activates traction and launch control for better traction and more efficient starts.
  • Hydraulic Brembo clutch system offers light operation and highly controllable modulation of the clutch.
  • High-tech Brembo brakes have always been standard equipment on KTM offroad bikes and are combined with lightweight Wave discs.
  • Handlebar clamps feature a separated lower clamp and bridge-type upper clamp for more torsional stiffness.
  • KTM’s “No Dirt” foot peg design keeps the peg pivot from becoming clogged, ensuring the foot peg is always in the correct position.
  • Super lightweight Galfer Wave rotors, CNC-machined hubs, high-end Excel rims and Dunlop MX 3S tires.
  • “No Dirt” shift lever prevents dirt from fouling the lever joint to ensure proper shifting in any condition.
450 SX-F

450 SX-F

SPECIFICATIONS

  • Engine Type: Single Cylinder, 4-Stroke
  • Displacement: 449.9 cc
  • Bore / Stroke: 95 / 63.4 mm
  • Compression Ratio: 12.75:1
  • Starter/Battery: Electric Starter / 12.8V, 2 Ah
  • Transmission: 5 Gears
  • Fuel System: Keihin EFI, 44 mm Throttle Body
  • Lubrication: Pressure lubrication with 2 oil pumps
  • Primary Ratio: 31:76
  • Final Drive: 13:49
  • Cooling: Liquid Cooling
  • Clutch: Wet Multi-Disc DDS-Clutch, Brembo Hydraulics
  • Ignition: Keihin EMS
  • Frame: Central Double-Cradle Type 25CrMo4 Steel
  • Sub Frame: Aluminum
  • Handle bar: Neken, Aluminum Ø 28/22 mm
  • Front Suspension: WP XACT USD Fork, Ø 48 mm
  • Rear Suspension: WP XACT Monoshock with Linkage
  • Suspension Travel Front/Rear: 310 mm / 12.2 in; 300 mm / 11.81 in
  • Front/Rear Brakes: Disc Brake 260 mm / 10.24 in; 220 mm / 8.66 in
  • Front/Rear Rims: 1.60x 21” / 2.15 x 19” Excel
  • Front/Rear Tires: 80/100-21” / 120/80-19” Dunlop MX 3S
  • Chain: 5/8 x 1/4 in
  • Silencer: Aluminum
  • Steering Head Angle: 26.1º
  • Triple Clamp Offset: 22 mm
  • Wheelbase: 1,485 mm ± 10 mm / 58.5 ± 0.4 in
  • Ground Clearance: 370 mm / 14.6 in
  • Seat Height: 950 mm / 37.4 in
  • Tank Capacity, Approx: 7 L / 1.85 gal
  • Weight (without fuel), Approx: 100.5 kg / 221.5 lbs

2020 KTM 350 SX-F

350 SX-F

350 SX-F

The KTM 350 SX-F continues to deliver a dominant mix of horsepower and agility. It has an exceptional power-to-weight ratio with torque similar to that of a 450, without losing its 250-like agility. When you’re looking for more than one advantage, this powerful, lightweight racer combines all your needs into one dominant package with serious championship pedigree to back it up.

HIGHLIGHTS

  • NEW graphics for a READY TO RACE appearance.
  • NEW WP XACT front fork setting for improved damping, and new fork piston for improved performance. Features proven, sophisticated air spring design with separate damping functions.
  • NEW WP XACT rear shock setting and new compression adjuster for improved tuning.
  • Compact DOHC (double overhead camshaft) engine with cutting-edge cylinder head featuring titanium valves and super-light finger followers with a hard DLC coating.
  • High-tech, lightweight chrome-moly steel frame with optimized stiffness provides a great blend of comfort and stability.
  • Single-piece cast aluminum swingarm features a long rear axle slot for increased adjustability, offering better straight-line stability.
  • Bodywork features a slim design for optimal comfort, control and freedom of movement.
  • Air box and air boot designed to provide maximum protection of the air filter against soiling and better airflow for optimal performance. Air filter can be accessed without tools for quick servicing. Optional perforated airbox cover included in the by-pack.
  • Header pipe with FDH (Flow Design Header) resonator system for improved performance.
  • Handlebar map switch selects between two maps and activates traction and launch control for better traction and more efficient starts.
  • Hydraulic Brembo clutch system offers light operation and highly controllable modulation of the clutch.
  • High-tech Brembo brakes have always been standard equipment on KTM offroad bikes and are combined with lightweight Wave discs.
  • Handlebar clamps feature a separated lower clamp and bridge-type upper clamp for more torsional stiffness.
  • KTM’s “No Dirt” foot peg design keeps the peg pivot from becoming clogged, ensuring the foot peg is always in the correct position.
  • Super lightweight Galfer Wave rotors, CNC-machined hubs, high-end Excel rims and Dunlop MX 3S tires.
  • “No Dirt” shift lever prevents dirt from fouling the lever joint to ensure proper shifting in any condition.
350 SX-F

350 SX-F

SPECIFICATIONS

  • Engine Type: Single Cylinder, 4-Stroke
  • Displacement: 349.7 cc
  • Bore / Stroke: 88 / 57.5 mm
  • Compression Ratio: 14.2:1
  • Starter/Battery: Electric Starter / 12.8V, 2 Ah
  • Transmission: 5 Gears
  • Fuel System: Keihin EFI, 44 mm Throttle Body
  • Lubrication: Pressure lubrication with 2 oil pumps
  • Primary Ratio: 24:73
  • Final Drive: 14:50
  • Cooling: Liquid Cooling
  • Clutch: Wet Multi-Disc DS-Clutch, Brembo Hydraulics
  • Ignition: Keihin EMS
  • Frame: Central Double-Cradle Type 25CrMo4 Steel
  • Sub Frame: Aluminum
  • Handle bar: Neken, Aluminum Ø 28/22 mm
  • Front Suspension: WP XACT USD Fork, Ø 48 mm
  • Rear Suspension: WP XACT Monoshock with Linkage
  • Suspension Travel Front/Rear: 310 mm / 12.2 in; 300 mm / 11.81 in
  • Front/Rear Brakes: Disc Brake 260 mm / 10.24 in; 220 mm / 8.66 in
  • Front/Rear Rims: 1.60x 21” / 2.15 x 19” Excel
  • Front/Rear Tires: 80/100-21” / 110/90-19” Dunlop MX3S
  • Chain: 5/8 x 1/4 in
  • Silencer: Aluminum
  • Steering Head Angle: 26.1º
  • Triple Clamp Offset: 22 mm
  • Wheelbase: 1,485 mm ± 10 mm / 58.5 ± 0.4 in
  • Ground Clearance: 370 mm / 14.6 in
  • Seat Height: 950 mm / 37.4 in
  • Tank Capacity, Approx: 7 L / 1.85 gal
  • Weight (without fuel), Approx: 99.5 kg / 219.4 lbs

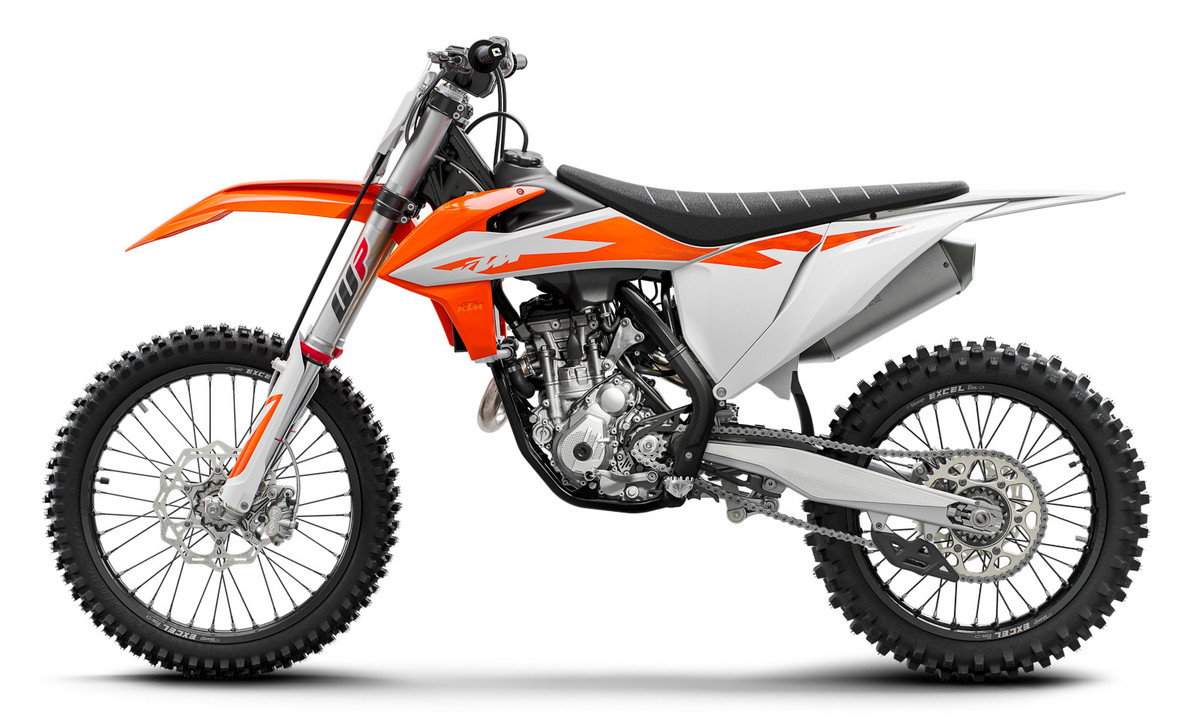

2020 KTM 250 SX-F

250 SX-F

250 SX-F

The KTM 250 SX-F was primed for global domination and is set to continue its dominance for 2020. Not only is it the lightest bike in its class, but it also offers an unrivaled, confidence-inspiring power delivery, making it a great choice for both amateur and professional riders. Laying the power down effectively is the secret to fast lap times and this capable package has all the right credentials to get the most important job done – getting to the checkered flag first.

HIGHLIGHTS

  • NEW graphics for a READY TO RACE appearance.
  • NEW WP XACT front fork setting for improved damping, and new fork piston for improved performance. Features proven, sophisticated air spring design with separate damping functions.
  • NEW WP XACT rear shock setting and new compression adjuster for improved tuning.
  • Compact DOHC (double overhead camshaft) engine with cutting-edge cylinder head featuring titanium valves and super-light finger followers with a hard DLC coating.
  • High-tech, lightweight chrome-moly steel frame with optimized stiffness provides a great blend of comfort and stability.
  • Single-piece cast aluminum swingarm features a long rear axle slot for increased adjustability, offering better straight-line stability.
  • Bodywork features a slim design for optimal comfort, control and freedom of movement.
  • Air box and air boot designed to provide maximum protection of the air filter against soiling and better airflow for optimal performance. Air filter can be accessed without tools for quick servicing. Optional perforated airbox cover included in the by-pack.
  • Header pipe with FDH (Flow Design Header) resonator system for improved performance.
  • Handlebar map switch selects between two maps and activates traction and launch control for better traction and more efficient starts.
  • Hydraulic Brembo clutch system offers light operation and highly controllable modulation of the clutch.
  • High-tech Brembo brakes have always been standard equipment on KTM offroad bikes and are combined with lightweight Wave discs.
  • Handlebar clamps feature a separated lower clamp and bridge-type upper clamp for more torsional stiffness.
  • KTM’s “No Dirt” foot peg design keeps the peg pivot from becoming clogged, ensuring the foot peg is always in the correct position.
  • Super lightweight Galfer Wave rotors, CNC-machined hubs, high-end Excel rims and Dunlop MX 3S tires.
  • “No Dirt” shift lever prevents dirt from fouling the lever joint to ensure proper shifting in any condition.
250 SX-F

250 SX-F

SPECIFICATIONS

  • Engine Type: Single Cylinder, 4-Stroke
  • Displacement: 249.9 cc
  • Bore / Stroke: 78.0 / 52.3 mm
  • Compression Ratio: 14.4:1
  • Starter/Battery: Electric Starter / 12.8V, 2 Ah
  • Transmission: 5 Gears
  • Fuel System: Keihin EFI, 44 mm Throttle Body
  • Lubrication: Pressure lubrication with 2 oil pumps
  • Primary Ratio: 24:73
  • Final Drive: 14:51
  • Cooling: Liquid Cooling
  • Clutch: Wet Multi-Disc DS-Clutch, Brembo Hydraulics
  • Ignition: Keihin EMS
  • Frame: Central Double-Cradle-Type 25CrMo4 Steel
  • Sub Frame: Aluminum
  • Handle bar: Neken, Aluminum Ø 28/22 mm
  • Front Suspension: WP XACT USD Fork, Ø 48 mm
  • Rear Suspension: WP XACT Monoshock with Linkage
  • Suspension Travel Front/Rear: 310 mm / 12.2 in; 300 mm / 11.81 in
  • Front/Rear Brakes: Disc Brake 260 mm / 10.24 in; 220 mm / 8.66 in
  • Front/Rear Rims: 1.60x 21” / 2.15 x 19” Excel
  • Front/Rear Tires: 80/100-21” / 110/90-19” Dunlop MX3S
  • Chain: 5/8 x 1/4 in
  • Silencer: Aluminum
  • Steering Head Angle: 26.1º
  • Triple Clamp Offset: 22 mm
  • Wheelbase: 1,485 mm ± 10 mm / 58.5 ± 0.4 in
  • Ground Clearance: 370 mm / 14.6 in
  • Seat Height: 950 mm / 37.4 in
  • Tank Capacity, Approx: 7 L / 1.85 gal
  • Weight (without fuel), Approx: 99 kg / 218.3 lbs
