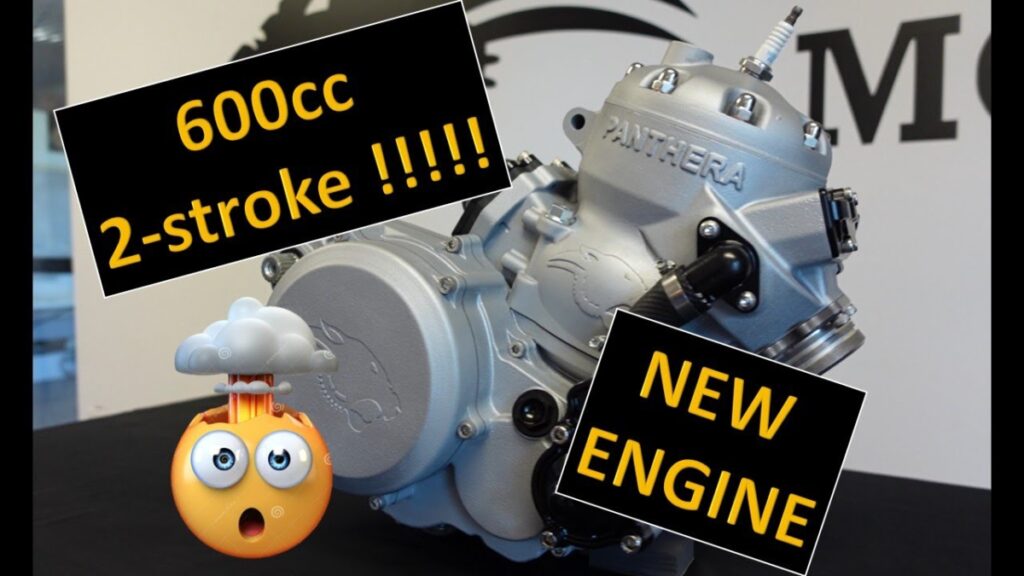

Panthera Motorsports, a Canadian company, has brought relief to Honda CR500 enthusiasts with their latest announcement. They are introducing a 600cc complete engine based on the Honda CR500 platform, featuring both an electric starter and hydraulic clutch options. The new PM09 engine by Panthera Motorsports will be available in three options: complete, Top-End only, and Bottom-End only.
Panthera Motorsports assures that the OEM Honda cylinder will fit perfectly on their Bottom-End, and the Panthera Top-End will seamlessly work with the OEM Honda Bottom-End. The pricing details are as follows: complete engines will be priced around $7,800 USD, the complete Bottom-End will range from $3,800.00 USD to $4,200.00 USD, and the complete Top-End will cost between $1,900.00 USD and $2,500.00 USD. For more information and images, please refer to Panthera Motorsports. The complete video can be found at the bottom of this post.
Down payment on our new PM09 engine package will allow you to get your spot in line and give us the guaranty needed to manufacture all the components to assemble your engine. The payment secures you a fixed price no matter the potential increase in final production costs.
**Your final vehicle fitment and requirement information will be gathered closer to completion date.
You will receive the mounts kit, exhaust and intake to fit your exact need.
This engine package will include
-Complete engine with kick start and electric start
-EFI throttle body or oversize carburetor
-ECU and complete wiring
-Complete exhaust
ENGINE SPECIFICATIONS
Bore and Stroke : 95mm x 84.5mm
Connecting rod length: 160mm
Primary ratio: 2.25
Transmission ratios: 1.75 / 1.39 / 1.09 / 0.87 / 0.72
Exhaust configuration: 1 main port and 2 sub ports
Transfer ports: 7
Powervalve system: Triple port, servo controlled
Electric starter: Yes
Weight : 70 lbs
Cost : $3,900.00 USD – $7,800.00 USD
COMPLETE BOTTOM-END
This complete engine block is the bottom end part of the Panthera PM09 600CC engine. It is made to endure the extreme power of our Panthera cylinder and will make a bullet proof base for your CR500. This engine is complete and fully assembled.
This engine base has the chassis bolt pattern and cylinder bolt pattern of a Honda CR500.
ENGINE BALANCER SHAFT
It will grant you the addition of a counter balancer shaft and electric starter for your CR500.
This engine base has 70% less vibration than a CR500.
CLUTCH
The engine comes with our high capacity clutch with 80% more torque capacity than the OEM clutch from honda. The actuator offered are :
-hydraulic slave
-cable actuator.
TRANSMISSION
The primary ration of the engine base has been increased to 2.25 to reduce loads on both clutch and transmission. You will also be able to run a smaller front sprocket
Two transmission ratio are offered:
Standard ratio – 1.75 / 1.39 / 1.15 / 0.95 / 0.79
HRC ratio – 1.75 / 1.39 / 1.09 / 0.87 / 0.72
CRANKSHAFT
We offer two possibility of crankshaft stroke :
– 79 mm
– 84.5 mm
WATERPUMP
The engine cases are equipped with a water pump with 70% higher flow capacity compared to oem, making the cooling of your engine more efficient.
Cost : $3,800.00 USD – $4,200.00 USD
COMPLETE TOP-END
This cylinder kit is a direct bolt in to the CR500 engine base. It is a modern design 2-stroke technology.
Our cylinder has a bore of 95mm making your standard stroke engine 560cc. It comes with a forged 95mm piston.
The optional servo controlled power valve blocks all 3 exhaust ports and procure a powerband twice larger than original CR500.
The supplied control module requires to receive only the spark ignition signal and a 12V supply.
DECOMPRESSOR has been installed on the head for easier starting.
| Weight | 10 lbs |
|---|---|
| Dimensions | 11 × 11 × 10 in |
| powervalve system | With electronic powervalve, No powervalve |
Cost : $1,900.00 USD – $2,500.00 USD
For more on the Panthera Motorsports PM09 engine head over to www.pantheramotosports.com
